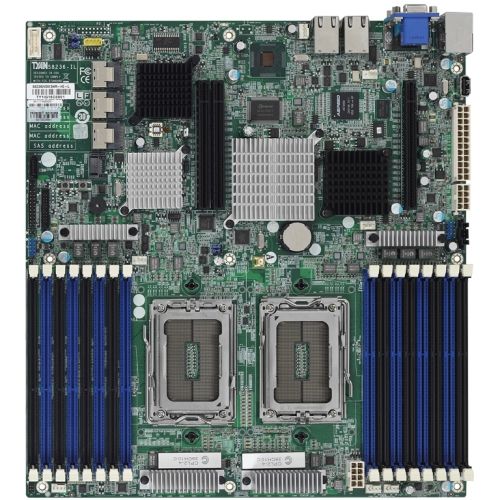

Tyan S8236-IL Server Motherboard - AMD Chipset - Socket G34 LGA-1974 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, LRDIMM, RDIMM, UDIMM - 16 x Memory Slots - Gigabit Ethernet - 3

Tyan S8236-IL Server Motherboard - AMD Chipset - Socket G34 LGA-1974 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, LRDIMM, RDIMM, UDIMM - 16 x Memory Slots - Gigabit Ethernet - 3
Brand: Tyan
Part Number: S8236WGM3NR-IL
Availability: 5 or more
Condition: New
Email Us

Tyan S8236-IL Server Motherboard - AMD Chipset - Socket G34 LGA-1974 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, LRDIMM, RDIMM, UDIMM - 16 x Memory Slots - Gigabit Ethernet - 3 x RJ-45 - 3 x SATA Interfaces - China RoHS, RoHS-6, WEEE Compliance

AMD Opteron™ 6100/6200 series1U/2U-optimized dual-socket server platformfor enterprise & GPGPU applicationsDual G34 sockets support AMD Opteron™ 6100/6200 series list processors (Magny-Cours/Interlagos)Support (4) HyperTransport™ 3.0 link,Yes bandwidth up to 25.6 GB/s @ 6.4GT/s per linkAMD SR5690 + SR5650 + SP5100 (S8236WGM3NR-HE)AMD SR5690 + SP5100 (S8236WGM3NR/ S8236GM3NR)(16) 240-pin DDR3 DIMM slots support up to 256GB R-DDR3 1333/1066/800MHz w/ ECC memory(2) PCI-E Gen.2 x16 slots (S8236GM3NR/ S8236WGM3NR)(6) SATA-II ports via (1) Mini-SAS & (2) SATA connectors w/RAID 0, 1, 10, 5 support(8) SAS 6G ports via (2) Mini-SAS connectors w/ RAID 0, 1, 1E,10 support (S8236WGM3NR-HE/ S8236GM3NR)(3) GbE LANOnboard BMC w/ IPMI and iKVM supportEATX (12" x 13") form factor


Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: SR5690
Total Processor Supported: 2
Processor Technology: HyperTransport 3.0 Technology
Processor Socket: Socket G34 LGA-1974
Processor Supported: Opteron
HyperTransport Speed (GT/s): 6.4
64-bit Processing: Yes
Number of Memory Slots: 16
Memory Form Factor: DIMM, LRDIMM, RDIMM, UDIMM
Maximum Memory Supported: 256 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
Controller Type: Serial ATA/300, 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Number of Network (RJ-45) Ports: 3
Number of SATA Interfaces: 3
Number of SAS Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 5
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Power Supply Supported: EPS12V
Form Factor: SSI EEB
Width: 12"
Depth: 13"
Package Contents: S8236 Series S8236-IL Server Motherboard, 1 x User's Manual / (1) Quick Ref. Guide, 1 x TYAN Installation CD, 1 x I/O Shield, 2 x SATA Signal Cables / (1) Mini-SAS cable, 3 x Mini-SAS Cables
Compatibility: 1U Barebone:
GT24-B8236
Certifications & Standards: ACPI 2.0, CE, FCC
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE, China RoHS
