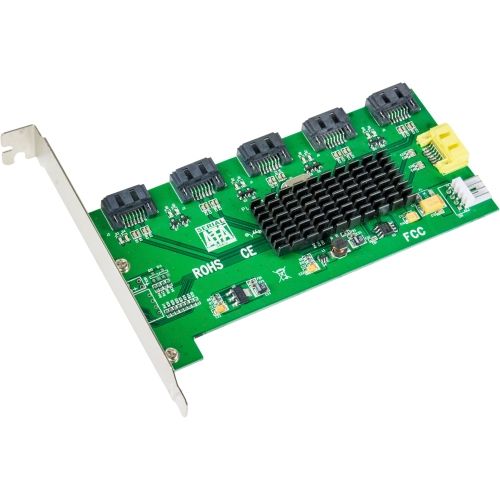

SYBA Multimedia 1:5 (5x1) Internal SATA II Port Multiplier (PM) - Plug and Play, Non-RAID Version - RoHS, WEEE Compliance SI-PCI40074

SYBA Multimedia 1:5 (5x1) Internal SATA II Port Multiplier (PM) - Plug and Play, Non-RAID Version - RoHS, WEEE Compliance

It integrates six independent SATA channels, and a micro-processor. With proper setting the chip can be configured as a 1 to 5-ports SATA II Port Multiplier, or a 5 to 1-port SATA II Port Selector. Based on JMB321 single chip. JMB321 contains 15 GPIOs which can be configured as various standard interfaces. It also has the capability to load external firmware code to extend its functionality.

Technical Specifications:
Host Interface: Serial ATA/300
Controller Type: Serial ATA/300
RAID Supported: No
Total Number of SATA Ports: 5
Number of SATA Ports (Internal): 5
Package Contents: 1:5 (5x1) Internal SATA II Port Multiplier (PM), Plug and Play, Non-RAID Version, 3 x SATA Cables (17"), 1 x Power Cord (9" , Molex IDE Power to Floppy Power), 1 x User Manual
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
