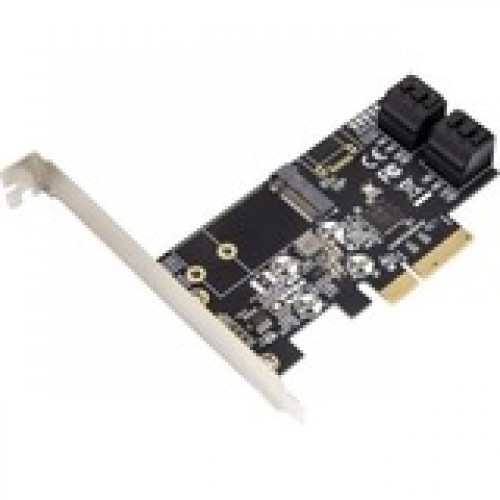

SYBA IO Crest 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card - Serial ATA/600 - PCI Express x4 - Plug-in Card - 4 Total SAS Port(s) - 4 SAS Port(s) Internal - PC, Linux SI-PEX40138

IO Crest 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card - Serial ATA/600 - PCI Express x4 - Plug-in Card - 4 Total SAS Port(s) - 4 SAS Port(s) Internal - PC, Linux

Using the JMB585 chipset, the SI-PEX40138 can provide extra 4 Port SATA III and one 22x42 M.2 B-key Slot to any free PCI-e x4 slot with PCIe Gen3 x2. of bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.

Technical Specifications:
Host Interface: PCI Express x4
Controller Type: Serial ATA/600
RAID Supported: No
Total Number of SAS Ports: 4
Number of SAS Ports (Internal): 4
Height: 4.8"
Width: 4.2"
Form Factor: Plug-in Card
Package Contents:

4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card, 4 x SATA Cables, Manaul

Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country of Origin: China
