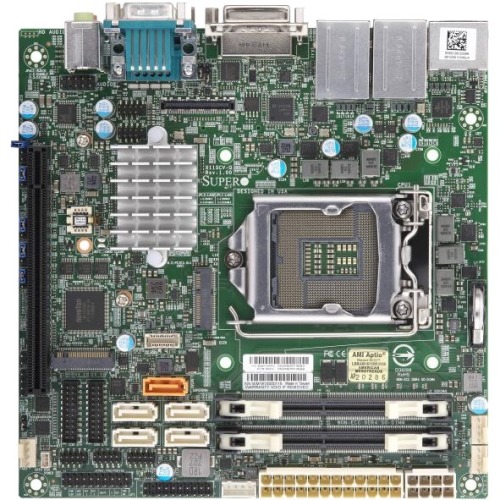

Supermicro X11SCV-Q Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Bulk Pack - Mini ITX - 1 x Processor Support - 32 GB DDR4 SDRAM Maximum RAM - 2.67 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial ATA/600 RAID Supported Co

Supermicro X11SCV-Q Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Bulk Pack - Mini ITX - 1 x Processor Support - 32 GB DDR4 SDRAM Maximum RAM - 2.67 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - CPU Dependent Video - HDMI - 7.1 Audio Channels - Gigabit Ethernet - 1 x PCI Express x16 Slots - 4 x USB Ports - DisplayPort - DVI - 2 x M.2 Interfaces - 5 x SATA Interfaces

8th Generation Core™ Processor Based MotherboardsB360/Q370/H310 chipset / Socket H4 BoardsSupermicro''s single processor Socket H4 designs feature the Intel® B360/Q370/H310 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Celeron, Pentium, Core i5, Core i7
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 5
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
