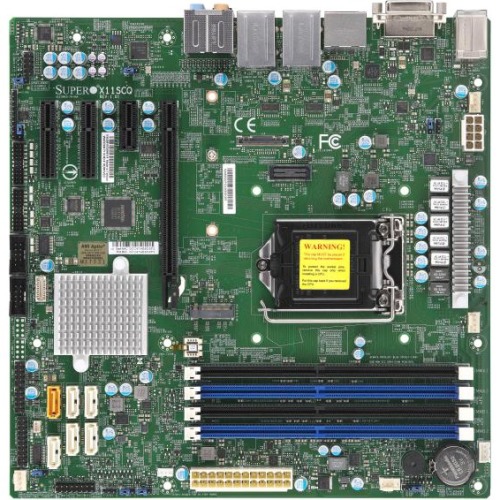

Supermicro X11SCQ Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 6 x SATA Interfaces MBD-X11SCQ-O

Supermicro X11SCQ Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 6 x SATA Interfaces

8th Generation Core™ Processor Based MotherboardsB360/Q370/H310 chipset / Socket H4 BoardsSupermicro''s single processor Socket H4 designs feature the Intel® B360/Q370/H310 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Celeron, Pentium, Core i7, Core i5, Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Package Contents:

X11SCQ Desktop Motherboard, 1 x Motherboard Quick Reference Guide, 6 x I/O Cables, 1 x Standard I/O Shield for X11SCQ/-L with EMI Gasket

Environmentally Friendly: Yes
Environmental Certification: RoHS
