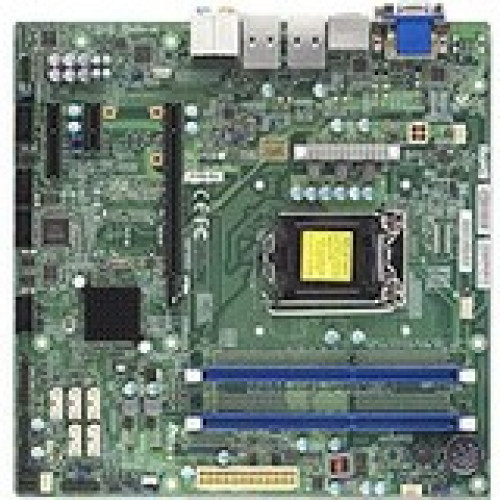

Supermicro X10SLQ-L Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - DVI - 5 x SATA Interfaces MBD-X10SLQ-L-B

Supermicro X10SLQ-L Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - DVI - 5 x SATA Interfaces

Supermicro® UP Motherboards - Best Power & Performance with Improved I/O Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3/v4 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling. The best technologies require the best management tools and support. Supermicro customer services include 3-year limited warranty, 4-hour and 24-hour repair service options, Rack Solution and Integration Services, Global Logistics, and highest-availability Global SKUs. Advanced management tools such as onboard IPMI 2.0 remote management support and advanced power management tools make the Supermicro customer experience more efficient and cost-effective. With best performance, leadership I/O, focus on energy efficiency, and continued advancements in customer support and services, Supermicro new generation server solutions are the optimal solution for SMB, Enterprise, and Public Sector Cloud Computing, Hadoop, Big Data, Data Centers, HPC, Storage, and General Server needs.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q87 Express
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i7, Core i3, Core i5, Xeon, Celeron, Pentium
Number of Memory Slots: 2
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 16 GB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 5
Total Number of Onboard USB Ports: 4
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility:

Supermicro SuperChassis:

Mid/Mini Tower Chassis:

SC731D-300B, SC732i-865B, SC732I-500B, SC732D2-903B, SC732D2-865B, SC732D2-500B, SC732D4-903B, SC732D4-865B, SC732D4-500B, SC732D4F-903B, SC732D4F-865B, SC732D4F-500B, SC731i-300B
