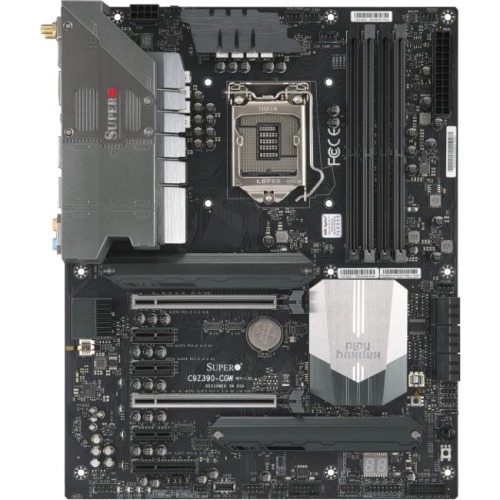

Supermicro C9Z390-CGW Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Retail Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 3.87 GHz O.C., 2.67 GHz, 2.40 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory Slots - Ser

Supermicro C9Z390-CGW Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Retail Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 3.87 GHz O.C., 2.67 GHz, 2.40 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - CPU Dependent Video - Bluetooth - Wireless LAN - HDMI - Gigabit Ethernet - 10Gigabit Ethernet - 3 x PCI Express x1 Slots - 1 x PCI Express x4 Slots - 2 x PCI Express x16 Slot

9th Generation Core™ Processor Based Motherboards Z390 chipset / Socket H4 Boards Supermicro''s single processor Socket H4 designs feature the Intel® Z390 chipset which support the Intel® 9th Generation Core™ i9/i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z390
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Celeron, Pentium, Core i5, Core i7, Core i9
Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3866 MHz, 2666 MHz, 2400 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Bluetooth: Yes
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 3.1 Ports: 6
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.1 Ports: 3
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

C9Z390-CGW Desktop Motherboard, 1 x IO Shield, 1 x Quick Reference Guide, 4 x SATA Cable, 1 x Driver CD, 1 x Metal Badge, 1 x WiFi+BT Antenna

Environmentally Friendly: Yes
Environmental Certification: WEEE
