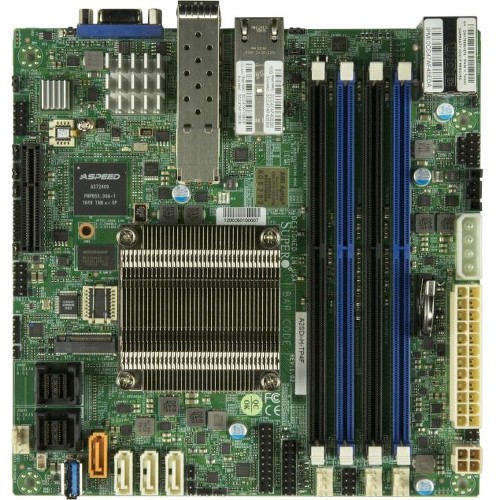

Supermicro A2SDI-H-TP4F Server Motherboard - Intel Chipset - Socket BGA-1310 - Intel Atom C3958 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, RDIMM, DIMM - 4 x Memory Slots - 4 x SATA Interfaces MBD-A2SDI-H-TP4F-O

Supermicro A2SDI-H-TP4F Server Motherboard - Intel Chipset - Socket BGA-1310 - Intel Atom C3958 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, RDIMM, DIMM - 4 x Memory Slots - 4 x SATA Interfaces

C3000 Series BOARDS (System-on-Chip)Supermicro''s motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1310
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3958
Integrated Processor Speed: 2 GHz
Integrated Processor Core: Hexadeca-core (16 Core)
Number of Memory Slots: 4
Memory Form Factor: UDIMM, RDIMM, DIMM
Maximum Memory Supported: 256 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2400 MHz, 2133 MHz, 1600 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 2
VGA: Yes
Number of SATA Interfaces: 4
Number of Mini-SAS Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 1
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

A2SDI-H-TP4F Server Motherboard, 1 x Motherboard Quick Reference Guide, 4 x SATA Cables, 2 x MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG, 1 x I/O Shield

Environmentally Friendly: Yes
Environmental Certification: RoHS
