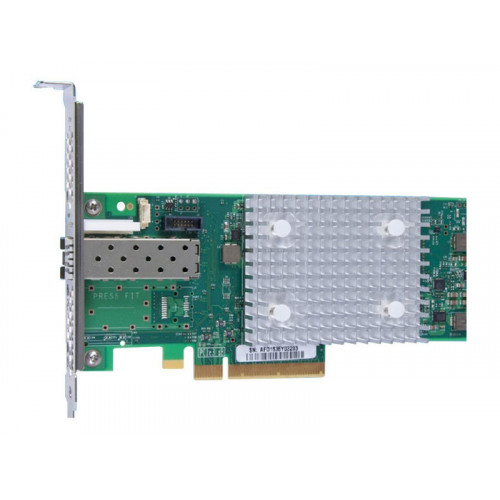

QLOGIC 16gb Single Port Pci Express 3.0 X8 Fibre Channel Host Bus Adapter QLE2690

Detail overview

Qlogic Qle2690-ck 16gb Single Port Pci Express 3.0 X8 Fibre Channel Host Bus Adapter


Technical Information :

Device Type : Host Bus Adapter
Form Factor : Plug-in Card
Interface (bus) Type : Pci Express 3.0 X8
Pci Specification Revision : Pcie 3.1
Ports : 16gb Fibre Channel X 1
Connectivity Technology : Wired
Data Link Protocol : 16gb Fibre Channel
Fibre Channel : Fc-gs-2, Fc-gs-3, Fc-tape, Fcp-2, Fc-pi-5, Scsi-fcp
Data Transfer Rate : 16 Gbps
Max Transfer Distance : 1312 Ft
Capacity : Concurrent Logins: 2048 Active Exchanges: 2048
Remote Management Protocol : Smi-s, Cli
Features : Quality Of Service (qos), Uefi Support, Bios Support, Transparent (n_port Id Virtualization - Npiv) Mode Support, Extended Message-signaled Interrupts (msi-x)

Environmental Parameters :

Min Operating Temperature : 32 °f
Max Operating Temperature : 131 °f
Humidity Range Operating : 10 - 90%

Dimensions :

Depth : 6.6 In
Height : 2.7 In
