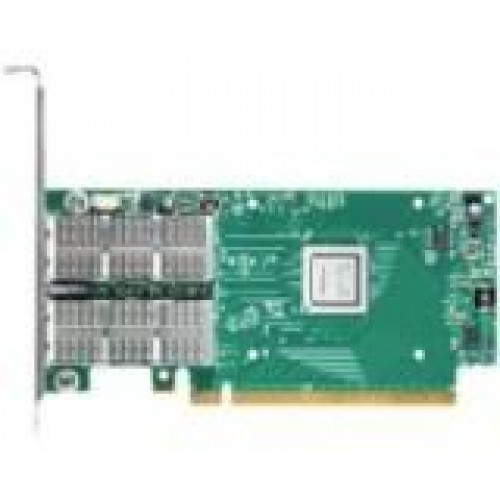

MELLANOX ConnectX VPI Infiniband Host Bus Adapter - PCI Express 3.0 x8 - 56 Gbit/s - 2 x Total Infiniband Port(s) - QSFP - Plug-in Card MCX454A-FCAT

Mellanox ConnectX VPI Infiniband Host Bus Adapter - PCI Express 3.0 x8 - 56 Gbit/s - 2 x Total Infiniband Port(s) - QSFP - Plug-in Card

ConnectX-4 adapter cards with Virtual Protocol Interconnect (VPI), supporting EDR 100Gb/s InfiniBand and 100Gb/s Ethernet connectivity, provide the highest performance and most flexible solution for high-performance, Web 2.0, Cloud, data analytics, database, and storage platforms. With the exponential growth of data being shared and stored by applications and social networks, the need for high-speed and high performance compute and storage data centers is skyrocketing. ConnectX®-4 provides exceptional high perfor-mance for the most demanding data centers, public and private clouds, Web2.0 and Big Data applications, as well as High-Performance Computing (HPC) and Storage systems, enabling today''s corporations to meet the demands of the data explosion. ConnectX®-4 provides an unmatched combination of 100Gb/s bandwidth in a single port, the lowest available latency, and specific hardware offloads, addressing both today''s and the next generation''s compute and storage data center demands.

Technical Specifications:
Total Number of InfiniBand Ports: 2
Host Interface: PCI Express 3.0 x8
Data Transfer Rate: 56 Gbit/s
Expansion Slot Type: QSFP
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7"
Width: 5.6"
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Country of Origin: Israel
