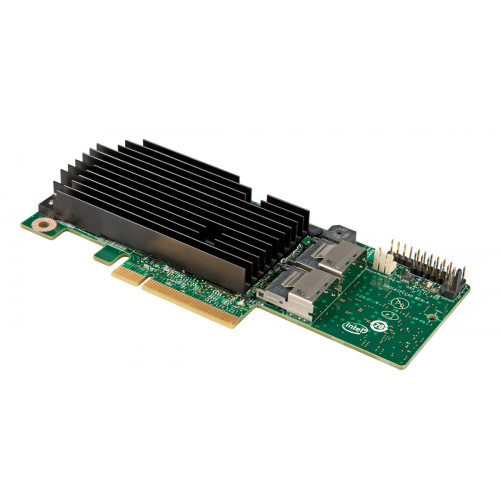

Intel 4-port SAS Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level Battery Backup RMS25PB040

Intel 4-port SAS Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level Battery Backup

Intel RMS25PB040. Supported storage drive interfaces: SAS,Serial ATA, Host interface: PCI Express x8. Data transfer rate: 6 Gbit/s, Form factor: PCIe, Internal memory: 1024 MB. Processor model: LSI2208. Packaging content: (1) RAID Controller module, Quick Start User Guide, 1 standard & 1 Low Profile bracket. Note:.... Compatible operating systems: Windows, Linux, VMWare, Market segment: SRV

Technical Specifications:
Host Interface: PCI Express 2.0 x8
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Data Backup Type: Battery Backup
Maximum Data Transfer Rate: 600
Form Factor: Plug-in Card
Card Height: Low-profile
Compatibility:

Intel Xeon E5 Series Server Boards
