Icy Dock ToughArmor RAID MB902SPR-B DAS Storage System - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - Serial ATA/600 Controller - RAID Supported 1 - 2 x Total Bays - 2 x 2.5" Bay - Internal MB902SPR-B

Icy Dock ToughArmor RAID MB902SPR-B DAS Storage System - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - Serial ATA/600 Controller - RAID Supported 1 - 2 x Total Bays - 2 x 2.5" Bay - Internal MB902SPR-B
Brand: Icy Dock
Part Number: MB902SPR-B
Availability: 5 or more
Condition: New
Email Us

Icy Dock ToughArmor RAID MB902SPR-B DAS Storage System - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - Serial ATA/600 Controller - RAID Supported 1 - 2 x Total Bays - 2 x 2.5" Bay - Internal

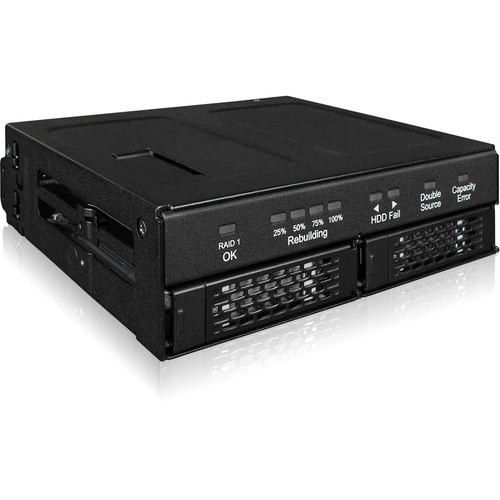

The ToughArmor RAID MB902SPR-B is a ruggedized full metal dual bay removable drive enclosure that supports 2 x 2.5" SATA hard drive or SSD in a single optical 5.25" drive bay of your computer/workstation system. With the built-in hardware RAID 1 chipset and easy to read RAID status LED indicators, you can conveniently mirror the 2.5" drives for data redundancy without adding a RAID card or RAID monitoring software on the host end. In addition, Central Process Unit (CPU) is normally required to calculate a RAID but, alternatively, by having a RAID chipset on the enclosure, it frees up the CPU overhead and speeds up the whole system. Therefore MB902SPR-B is a perfect removable drive enclosure for mission-critical computer systems that not only make your system work faster but also provides protection against your critical data. Built-In RAID 1 (Safe Mode) With the built-in JMS562 hardware RAID chipset, you can create a 2.5" SSD/HDD RAID 1 array in any system without using a RAID controller card. The ToughArmor RAID MB902SRP-B automatically mirrors two 2.5" SATA HDD/SSD for data redundancy to prevent system downtime caused by a single hard drive failure. Advanced RAID Status LED Indicators The ToughArmor RAID MB902SPR-B is equipped with easy to read RAID status LED indicators for users to understand the current drive status without using a RAID monitoring software. However, if your application requires using a RAID monitoring software, it is available to download and install on Windows/Mac computers. Removable Drive Trays The MB902SPR-B features full metal removable EZ-Slide drive trays found throughout the ToughArmor Series, allowing users to install or remove 5-15mm height drives without opening the computer case or powering off the computer. EMI Grounding Making sure your drives are properly grounded is important, especially through many drive swaps. Without it, there is a high possibility that there may be static shocks that could damage your drives or may result in losing your important data. Our EMI grounding technology ensures a stable and safe environment for the HDD/SSD used, which improves reliability. Safe and Secure Ruggedized full metal chassis and trays ensure maximum drive security and further aids in drive heat dissipation. A built-in anti-vibration mechanism helps to reduce noise and protects against environmental damage. Packed with Features Large ventilation holes are placed around the enclosure to work alongside your computer''s cooling system to keep the drives operating at optimal temperatures The ToughArmor MB902SPR-B supports SATA 7 pin data and 15 pin power cables with locking latches, so you will never need to worry about the cables unintentionally disconnecting from the enclosure. Once the cables are connected, they will stay in place.


Technical Specifications:
Number of Hard Drives Supported: 2
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 2
Number of Solid State Drive Installed: 0
Number of Total Expansion Bays: 2
Number of 2.5" Bays: 2
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 1
Host Interface: SATA/600
Height: 1.6"
Width: 5.5"
Depth: 5.7"
Form Factor: Internal
Weight (Approximate): 1.47 lb
Package Contents:
    ToughArmor RAID MB902SPR-B DAS Storage System, User Manual, Screws

Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH
Country of Origin: China
