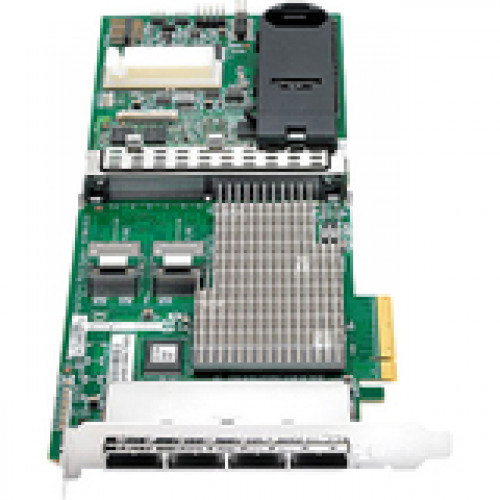

HPE Smart Array P812 SAS RAID Controller - PCI Express x8 - Full-height - Plug-in Card - RAID Supported - 0, 1, 1+0, 5, 6, 50, 60 RAID Level - 2 x SFF-8087, 4 x SFF-8088 - 6 Total SAS Port(s) - 6 SAS Port(s) Internal 487204-B21

HPE Smart Array P812 SAS RAID Controller - PCI Express x8 - Full-height - Plug-in Card - RAID Supported - 0, 1, 1+0, 5, 6, 50, 60 RAID Level - 2 x SFF-8087, 4 x SFF-8088 - 6 Total SAS Port(s) - 6 SAS Port(s) Internal

The HPE Smart Array P812 is HP''s 24 port Serial Attached SCSI (SAS) RAID controller with PCI Express (PCIe). This high performance SAS RAID controller provides high levels of reliability for HPE servers through its support of 6 Gb/s SAS and 3 Gb/s SATA technology, 1 GB FBWC, and advanced RAID capabilities. This controller ships standard with a Smart Array Advanced Pack license key and supports up to 108 hard drives.

Technical Specifications:
Host Interface: PCI Express x8
RAID Supported: Yes
RAID Levels: 0, 1, 1+0, 5, 6, 50, 60
Total Number of SAS Ports: 6
Number of SAS Ports (Internal): 6
SAS Connector Details: 2 x SFF-8087, 4 x SFF-8088
Height: 4.4"
Width: 12.2"
Thickness: 0.5"
Form Factor: Plug-in Card
Card Length: Full-length
Card Height: Full-height
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
