HPE D2220sb Build-to-order Storage Blade - 12 x HDD Supported - 14.40 TB Supported HDD Capacity - 12 x SSD Supported - 14.40 TB Supported SSD Capacity - RAID Supported 0, 1, 5, 6, 10, 1, 1+0, 5, 6 - 12 x Total Bays - Blade QW917A

HPE D2220sb Build-to-order Storage Blade - 12 x HDD Supported - 14.40 TB Supported HDD Capacity - 12 x SSD Supported - 14.40 TB Supported SSD Capacity - RAID Supported 0, 1, 5, 6, 10, 1, 1+0, 5, 6 - 12 x Total Bays - Blade

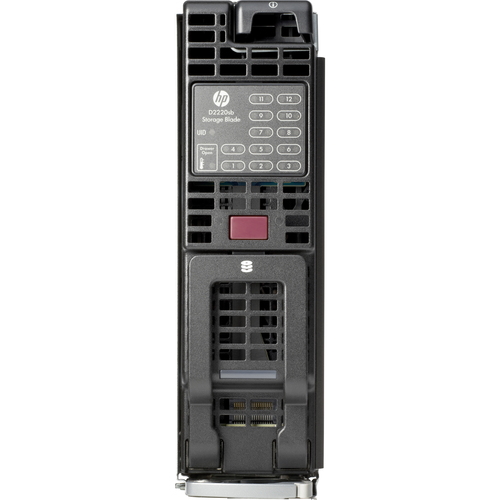

Do you need a direct attached or shared storage solution within your BladeSystem enclosure? The D2220sb Storage Blade delivers direct attached storage for c-Class Gen8 blade servers, with support for up to twelve SFF SAS hard disk drives or SAS/SATA SSDs or SATA Midline hard drives. The enclosure backplane provides a PCI Express connection to the adjacent c-Class server blade and enables high performance storage access without any additional cables. The D2220sb features the onboard Smart Array P420i controller with 2 GB flash-backed write cache, for increased performance and data protection. Up to eight D2220sb storage devices can be supported in a single BladeSystem c7000 enclosure for up to 115.

Technical Specifications:
Number of Hard Drives Supported: 12
Total Hard Drive Capacity Supported: 14.40 TB
Number of Solid State Drive Supported: 12
Total Solid State Drive Capacity Supported: 14.40 TB
Number of Total Expansion Bays: 12
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 1, 1+0, 5, 6
Drive Interface: Serial ATA, 6Gb/s SAS
Host Interface: PCI Express
Protocols: SNMP
Form Factor: Blade
Package Contents: D2220sb Build-to-order Storage Blade, Documentation
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: REACH
