Epson LQ-680Pro Dot Matrix Printer - ENERGY STAR, TAA Compliance C376101

Epson LQ-680Pro Dot Matrix Printer - ENERGY STAR, TAA Compliance C376101
Brand: Epson
Part Number: C376101
Availability: 5 or more
Condition: New
Email Us

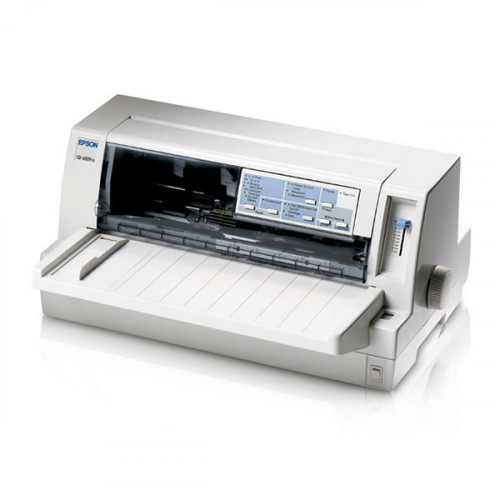

Epson LQ-680Pro Dot Matrix Printer - ENERGY STAR, TAA Compliance

Printing 413 cps in High-Speed Draft mode, the Epson LQ-680Pro creates letter-quality results on forms up to six parts thick. Thirty-eight percent faster than its predecessor, the popular Epson LQ-670, this economical printer races through your mission-critical tasks like printing tickets, receipts, checks, labels, and more.


Technical Specifications:
Print Color Capability: Monochrome
Maximum Mono Print Speed (cps): 413
Maximum Print Resolution (dpi): 360 x 360
Number of Pins: 24-pin
Standard Memory: 64 KB
Maximum Memory Supported: 64 KB
Parallel Port: Yes
LocalTalk: Yes
Media Type: Plain Paper, Continuous Form, Cut Sheet, Envelope, Roll Paper
Media Size: Letter - 8.50" x 11", Legal - 8.50" x 14", A4 - 8.30" x 11.70", A5 - 5.80" x 8.30", A3 - 11.70" x 16.50", B4 - 9.80" x 13.90", Envelope No. 6, Envelope No. 10, Custom Size
Media Handling: Push Tractor - Rear, Cut Sheet Feeder - Rear, Cut Sheet Feeder - Front, Friction Feed - Front
Maximum Print Size: A3 - 11.70" x 16.50"
Language Emulation: Epson ESC/P2, IBM 2390 Plus
MTBF: 10000 Hour
Power Source: AC Supply
Input Voltage: 120 V AC
Operating Power Consumption: 42 W
Off-Mode Power Consumption: 0 mW
Sleep-Mode Power Consumption: 3.40 W
Form Factor: Desktop
Product Color: White
Height: 9"
Width: 19.6"
Depth: 15.2"
Weight (Approximate): 20.70 lb
Package Contents: LQ-680Pro Printer, User Guide, Drivers (CD), Ribbon
Additional Information: Flatbed APG (Automatic Platen Gap) adjustment technology, Maximum Form Parts: 6

Character Sets:

13 standard version, 39 NLSP version, 14 international character sets

Scalable Fonts:

EPSON Roman 8 to 32 points (every 2 pt), EPSON Sans Serif 8 to 32 points (every 2 pt), EPSON Roman T 8 to 32 points (every 2 pt), EPSON Sans Serif H 8 to 32 points (every 2 pt)

Resident Bitmapped Fonts (cpi):

EPSON Draft 10 cpi, 12 cpi, 15 cpi, EPSON Roman 10 cpi, 12 cpi, 15 cpi, Proportional, EPSON Sans Serif 10 cpi, 12 cpi, 15 cpi, Proportional, EPSON Courier 10 cpi, 12 cpi, 15 cpi, EPSON Prestige 10 cpi, 12 cpi, EPSON Script 10 cpi, EPSON OCR-B 10 cpi, EPSON Orator 10 cpi, EPSON Orator-S 10 cpi, EPSON Script C Proportional

Paper Feed Mechanism:

Feeding method: Friction feed (front manual, rear cut sheet feeder), Push tractor feed (rear), Feeder: Rear push tractor, Cut sheet feeder bin1/bin2 (option), Roll paper holder (option)

Paper Path:

Manual insertion (front in, front out), Cut sheet feeder (rear in, front out), Tractor (rear in, front out)

Paper Handling:

Cut sheet single sheet (front entry, manual insertion): Width 3.5" to 12" , Length 2.8" to 16.5" , Thickness 0.0025" to 0.0074", Cut sheet multipart (front entry, manual insertion): Width 3.5" to 12" , Length 2.8" to 16.5" (line glue on one side of the form, 11.7" maximum), Thickness 0.0047" to 0.018" , Copies 1 original + 5 copies, Continuous paper: Width 4" to 12" , Length (one page) 3" to 22" , Thickness 0.0025" to 0.018" , Copies 1 original + 5 copies, Continuous forms with labels: Base sheet width 4" to 12" , Base sheet length 3" to 22" , Total thickness 0.0075"
System Requirements: Windows 3.1x, Windows 95, Windows 98, Windows 2000, Windows Me, Windows NT 3.51, Windows NT 4.0, Microsoft DOS
Certifications & Standards: EPA Energy Star
Platform Supported: PC
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR
