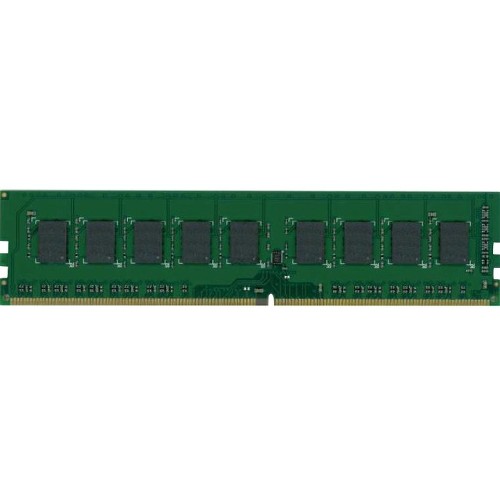

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB - DDR4-2133/PC4-17000 DDR4 SDRAM - CL15 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM DVM21E1T8/4G

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB - DDR4-2133/PC4-17000 DDR4 SDRAM - CL15 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM

DVM21E1T8/4G is an Unbuffered 512Mx72 memory module, which conforms to JEDEC''s DDR4-2133, PC4-2133 standard. The assembly is Single-Rank, comprised of nine 512Mbx8 DDR4- 2133 SDRAMs. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Memory Speed: 2133 MHz
Memory Standard: DDR4-2133/PC4-17000
Error Checking: ECC
Signal Processing: Unbuffered
CAS Latency: CL15
Device Supported: Desktop PC
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
