Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 1.20 V - ECC - Unbuffered - 288-pin - DIMM DTI24E1T8W/4G

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 1.20 V - ECC - Unbuffered - 288-pin - DIMM DTI24E1T8W/4G
Brand: Dataram
Part Number: DTI24E1T8W/4G
Availability: 5 or more
Condition: New
Email Us

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 1.20 V - ECC - Unbuffered - 288-pin - DIMM

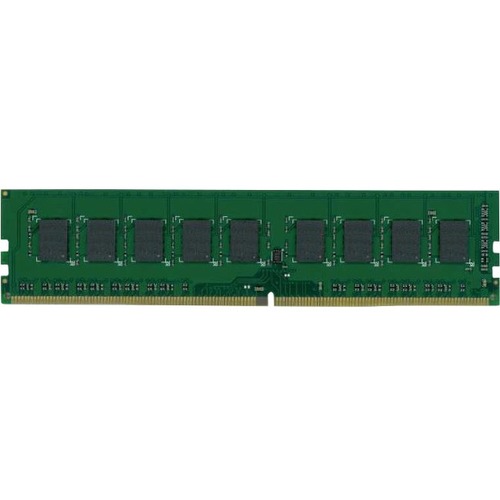

DTI24E1T8W/4G is an Unbuffered 512Mx72 memory module, which conforms to JEDEC''s DDR4-2400T, PC4-2400T standard. The assembly is Single-Rank, comprised of nine 512Mbx8 DDR4- 2400T Industrial Temperature Range SDRAMs.One EEPROM is used for Serial Presence Detect.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.


Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 4GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-19200
Error Checking: ECC
Signal Processing: Unbuffered
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: REACH, RoHS, WEEE
