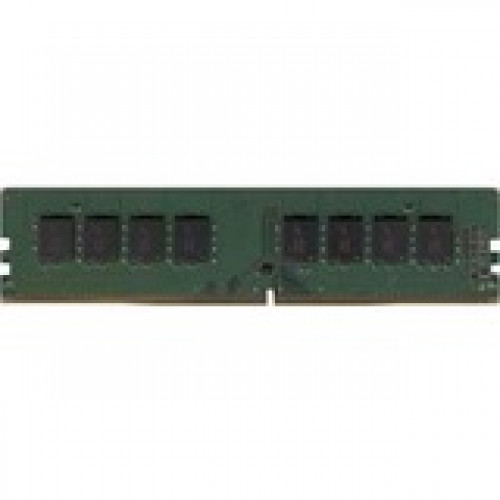

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 1.20 V - Non-ECC - Unbuffered - 288-pin - DIMM DTI24U2T8W/16G

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 1.20 V - Non-ECC - Unbuffered - 288-pin - DIMM

DTI24U2T8W/16G is an Unbuffered 2Gx64 memory module, which conforms to JEDEC''s DDR4-2400, PC4-2400 standard. The assembly is Dual-Rank. Each rank is comprised of eight 1Gbx8 DDR4-2400 Industrial temp SDRAMs.One EEPROM is used for Serial Presence Detect.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 16 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 16GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-19200
Error Checking: Non-ECC
Signal Processing: Unbuffered
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
