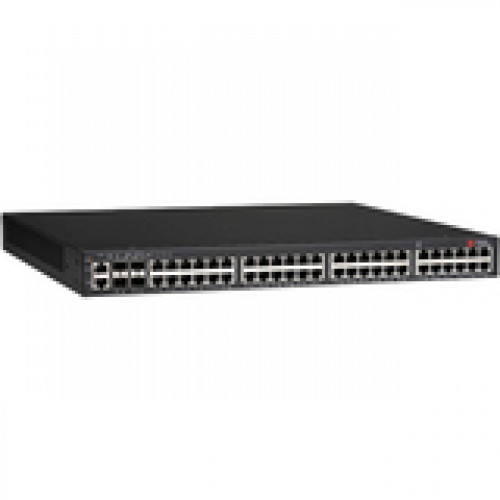

Brocade ICX 6450-48P Ethernet Switch - 48 Ports - Manageable - Stack Port - 4 x Expansion Slots - 10/100/1000Base-T - 2 x SFP Slots - 2 x SFP+ Slots - 2 Layer Supported - Redundant Power Supply - DesktopLifetime Limited Warranty ICX6450-48P

Brocade ICX 6450-48P Ethernet Switch - 48 Ports - Manageable - Stack Port - 4 x Expansion Slots - 10/100/1000Base-T - 2 x SFP Slots - 2 x SFP+ Slots - 2 Layer Supported - Redundant Power Supply - DesktopLifetime Limited Warranty ICX6450-48P
Brand: Brocade
Part Number: ICX6450-48P
Availability: 5 or more
Condition: New
Email Us

ICX 6450-48P Ethernet Switch

Today's organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.

Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks-at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports-with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+-to support enterprise edge networking, wireless mobility, and IP communications.

Product Type Ethernet Switch
Form Factor Desktop
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet, Fast Ethernet
Network Technology 10/100/1000Base-T
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
Number of PoE+ (RJ-45) Ports 48
Number of Total Expansion Slots 4
Number of SFP Slots 2
Layer Supported 2
Manageable Yes
Management
  • VLAN
  • IGMP v2/v3
  • SNMP v1/2c
  • DHCP
  • Syslog
  • RMON
  • TELNET
  • MIB
  • CLI
  • GUI
  • QoS
PoE (RJ-45) Port Yes
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Yes
Height 1.7"
Width 17.4"
Depth 14.6"
Weight (Approximate) 14.11 lb
Limited Warranty Lifetime
Green Compliant Yes
Green Compliance Certificate/Authority WEEE, RoHS-6
Number of SFP+ Slots 2
Stack Port Yes
Certifications & Standards

Electromagnetic Compatibility:

  • FCC Part 15, Subpart B, Class A
  • ICES-003: 2004
  • VCCI-Technical Requirement (V-3/2011.04)/Class A
  • EN 55022: 2006+A1: 2007 Class A
  • EN 61000-3-2: 2006+A1:2009+A2:2009 Class A
  • EN 61000-3-3: 2008
  • EN 61000-6-1: 2007
  • EN 61000-6-3: 2007
  • EN 55024: 1998+A1:2001+A2:2003
  • EN 300 386 (V1.4.1): 2008
  • IEC 61000-4-2: 2008 ED. 2.0
  • IEC 61000-4-3: 2006+A1:2007+A2:2010 ED. 3.2
  • IEC 61000-4-4: 2004+A1:2010 ED. 2.0
  • IEC 61000-4-5: 2005 ED. 2.0
  • IEC 61000-4-6: 2008 ED. 3.0
  • IEC 61000-4-8: 2009 ED. 2.0
  • IEC 61000-4-11: 2004 ED. 2.0

Safety:

  • CAN/CSA-C22.2 NO. 60950-1-07
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • EN 60825-1
  • EN 60825-2

IEEE Standards Compliances:

  • IEEE 802.1AB
  • IEEE 802.1D
  • IEEE 802.1p
  • IEEE 802.1Q
  • I
MTBF 397590 Hour
