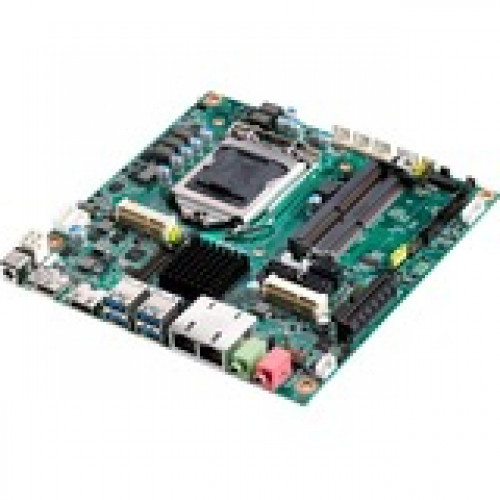

Advantech AIMB-285 A2 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - HDMI - 1 x RJ-45 - 2 x SATA Interfaces AIMB-285L-00A2E

Advantech AIMB-285 A2 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - HDMI - 1 x RJ-45 - 2 x SATA Interfaces

MINIITX LGA1151

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H110
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Core i5, Core i7, Pentium
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 2
Number of Onboard USB 2.0 Ports: 0
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

AIMB-285 A2 Desktop Motherboard, 1 x SATA HDD Cable, 1 x SATA Power Cable, 2 x Serial Port Cable (1 port, 25cm), 1 x I/O Port Bracket, 1 x Startup Manual

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
