Adaptec 6405E 4-port SAS RAID Controller - Serial ATA/600, 6Gb/s SAS - PCI Express 2.0 x1 - Plug-in Card - RAID Supported - 0, 1, 10, 1E, JBOD RAID Level - 4 Total SAS Port(s) - 4 SAS Port(s) Internal 2271700-R

Adaptec 6405E 4-port SAS RAID Controller - Serial ATA/600, 6Gb/s SAS - PCI Express 2.0 x1 - Plug-in Card - RAID Supported - 0, 1, 10, 1E, JBOD RAID Level - 4 Total SAS Port(s) - 4 SAS Port(s) Internal 2271700-R
Brand: Adaptec
Part Number: 2271700-R
Availability: 5 or more
Condition: New
Email Us

+ -

Add to Wish List
Add to Compare

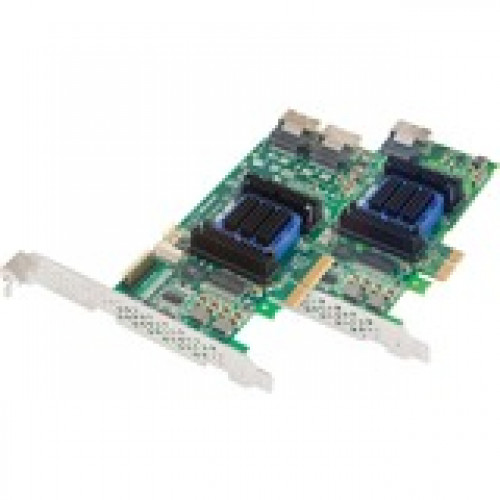

6405E 4-port SAS RAID Controller

4 internal port, low-profile MD2 - Low Profile (2.535"H x 5.115"L) with PCIe x1, SAS 2.0 and Gen 2 PCI-Express (PCIe) Unified Serial RAID controller with On-Board DRAM and Intelligent Power Management delivers the ideal price/performance and connectivity solution for entry-level server platforms, workstations and desktop systems.
Product Type SAS Controller
Form Factor Plug-in Card
Height 2.5"
Width 5.1"
Limited Warranty 3 Year
Green Compliant Yes
Green Compliance Certificate/Authority REACH, RoHS
Package Contents
  • 6405E 4-port SAS RAID Controller
  • 1 x Mini SAS x4 to (4x) SATA fanout Cables w/ sideband, 0.7 meter
Controller Type 6Gb/s SAS, Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 10, 1E, JBOD
Total Number of SAS Ports 4
Card Height Low-profile
Platform Supported PC, SPARC
Host Interface PCI Express 2.0 x1
Number of SAS Ports (Internal) 4
SAS Connector Details 1 SFF-8087
