Detail overview

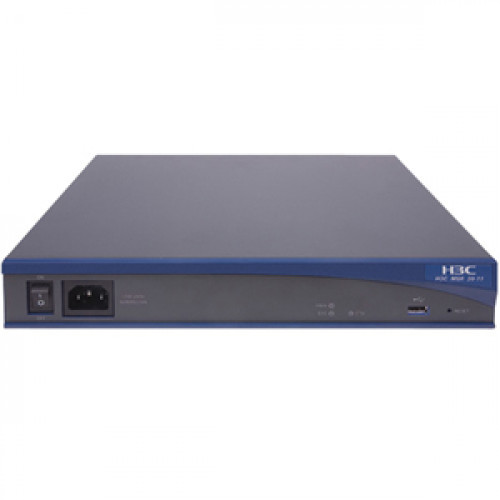

Hpe - A-msr20-11 Router 4-port Switch Desktop (jf239-61101).
Key Features :
Device Type : Router - 4-port Switch (integrated)
Enclosure Type : Desktop - Modular - 1u
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet
Network / Transport Protocol : Tcp/ip, L2tp, Rsvp, Ntp, Pppoe
Routing Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Igmpv2, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Multiprotocol Bgp, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ripng
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Telnet, Snmp 3, Http, Ftp, Ssh
Encryption Algorithm : Md5, Ssl, Tls
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
Features : Firewall Protection, Dhcp Support, Nat Support, Vpn Support, Napt Support, Arp Support, Mpls Support, Igmp Snooping, Syslog Support, Port Mirroring, Ipv6 Support, Weighted Fair Queuing (wfq), Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Mld Snooping
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.1w, Ieee 802.1x, Ieee 802.1s
Processor : 1 X 333 Mhz
Ram : 256 Mb - Ddr Sdram
Flash Memory : 32 Mb
Expansion / Connectivity :
Interfaces : Lan : 4 X 10base-t/100base-tx - Rj-45 Wan : 1 X 10base-t/100base-tx - Rj-45 Serial : 1 X Usb : 1 X Management : 1 X Rs-232c
Expansion Slot(s) : 1 Smart Interface Card (sic)
Power :
Power Device : Power Supply - Internal
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 25 Watt
