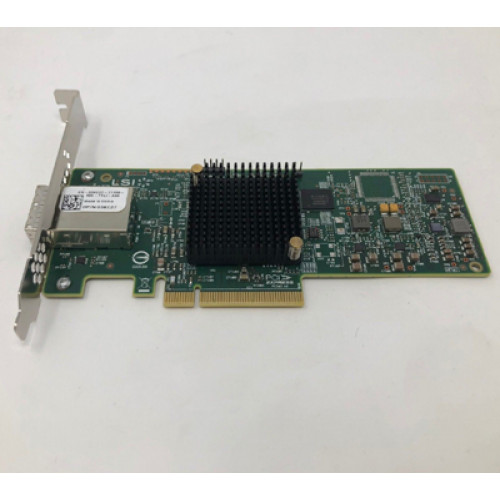

DELL 9300-8e 12gb/s 8-port External Pci-express 3.0 X8 Sas Controller 3KC27

Detail overview

Dell 3kc27 9300-8e 12gb/s 8-port External Pci-express 3.0 X8 Sas Controller.

Specification

Host Bus Type X8 Lane Pci Express 3.0

Physical Dimensions Low Profile (2.6” X 6.0”)

Devices Supported 1024 Non-raid Sas/sata Devices

External Connectors 2 Mini-sas Hd Sff8644

Fusion Mpt Support Fusion Mpt 2.5

Operating Temperature 0°c To 55°c

Operating Voltage (v) +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver. Installation Of An Lsi Driver Is Not Required.

Pci Power 14.5w

Cable Support Passive Copper, Active Optical

I/o Controller Lsi Sas3008

Mtbf > 2,800,000 Hours

Operating Humidity 5% To 90% Non-condensing

Data Transfer Rates 12gb/s Sas-3 Compliant
